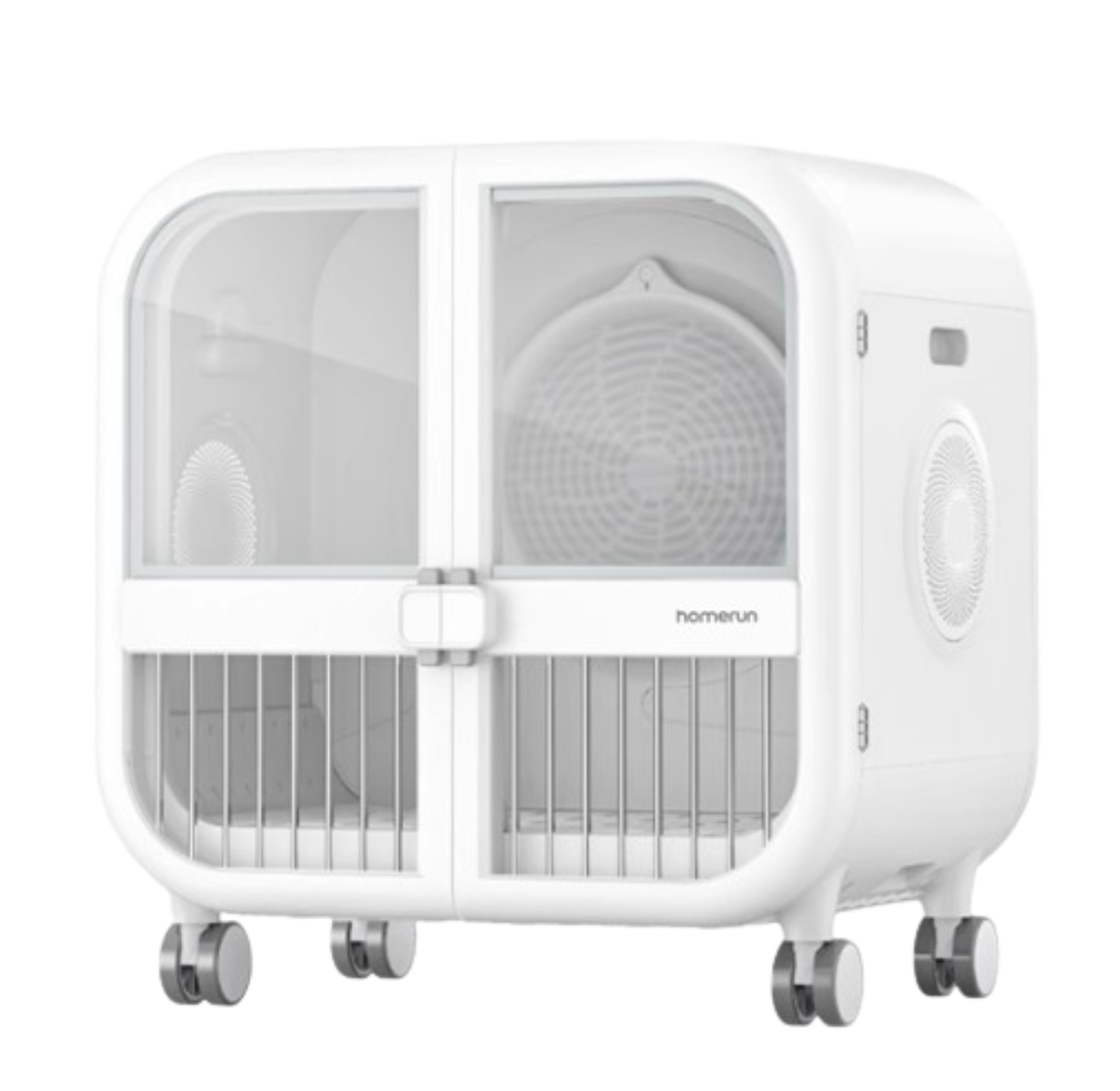

Homerun Pet Hairdryer Ultra

The PD135 dryer features an innovative breathable fence design and utilizes an Archimedes spiral air duct to reduce wind resistance while increasing air intake. This design allows for faster drying by providing uniform airflow from the bottom to the back. The dryer is equipped with a high-precision sensor and overheating protection components to ensure the safety of pets. With a large space of 135 liters, it can accommodate pets in various sleeping positions, enhancing the interaction between humans and pets during the drying process. The dryer also offers a quick drying time of 30 minutes and operates with a low sound level of only 34 dB, ensuring a peaceful environment for both pets and owners. Additionally, it can be used as a cat kennel or small dog kennel.

Key Features:

• Fresh Air System: The PD135 dryer ensures good air quality inside the box with a high air exchange capacity of 1620 L/min, providing pets with fresh air. The air changes 12 times per minute, promoting better respiratory health.
• Adjustable Temperature: The dryer features a smart temperature control system that allows you to adjust the temperature from 16°C to 40°C. It maintains a constant temperature with precise temperature control technology, ensuring stability within a fluctuation range of only ±1°C. The box has four sets of NTC temperature sensors for accurate temperature detection and two sets of PTC heating technology that can raise the temperature by 20°C in just 2 minutes.
• Thorough Drying: The dryer is designed to eliminate dead spots, ensuring that all areas are dried and cooled evenly. The bottom air supply design is particularly suitable for pets lying on their stomachs, effectively drying difficult-to-reach areas like the belly and feet.
• Extra Space: With a spacious interior, the PD135 dryer can accommodate pets in various positions. The 135-liter-sized space is sufficient to meet the needs of different pet families.
• Innovative Breathable Fence: The removable grid mesh cover enhances air circulation, allowing for a larger area of airflow and improved ventilation.

Instructions:

1. Routine Operation:
   a. Press and hold the power button to turn on the dryer.
   b. Slide the button to unlock the device. The key indicator will light up.
   c. Slide the button again to lock the device. Only the power and lock buttons will remain illuminated.
   d. Press the power button to adjust the light brightness.
   e. Hold down the power button to turn off the indicator.

2. Setting the Drying Mode:
   a. Press the Mode button to switch between comfortable drying and quick drying modes.
   b. Press the Set button to enter temperature setting. Use the Increase or Decrease buttons to adjust the temperature.
   c. Press the Set button again to enter time setting. Use the Increase or Decrease buttons to adjust the working time.
   d. Press the Set button once more to enter wind speed setting. Use the Increase or Decrease buttons to adjust the wind speed.
   e. Once the settings are complete, press the Start/Stop button to start the drying process.

   • Note: During the drying process, the wind speed can be adjusted at any time using the Increase or Decrease buttons. After setting the parameters, the drying mode can be directly started by pressing the Start button in subsequent uses.

3. Winter Warm Cat Nest Mode:

   • Note: Remove the window before using this mode.
     a. Press the Mode button to switch to Winter Warm Cat Nest mode.
     b. Press the Set button to enter temperature setting. Use the Increase or Decrease buttons to adjust the temperature.
     c. Press the Set button again to enter wind speed setting. Use the Increase or Decrease buttons to adjust the wind speed.
     d. Once the settings are complete, press the Start/Stop button to start the operation.
   • Note: During operation, the wind speed can be adjusted at any time using the Increase or Decrease buttons. After setting the parameters, the Winter Warm Cat Nest mode can be directly started by pressing the Start button in subsequent uses.

4. Summer Cooling Cat Nest Mode:

   • Note: Remove the window before using this mode.
     a. Press the Mode button to switch to Summer Cooling Cat Nest mode.
     b. Press the Set button to enter wind speed setting. Use the Increase or Decrease buttons to adjust the wind speed.
   • Note: During operation, the wind speed can be adjusted at any time using the Increase or Decrease buttons.

5. Sterilization Mode:

   • Note: Install the sterilization window and close the door before using this mode. Do not allow pets to enter the dryer during sterilization.
     a. Press the Mode button to switch to the quick drying mode.
     b. Press and hold the Lock and Mode buttons again to enter the sterilization and clean flavor mode.
     c. Press the Start/Stop button to start the system.
   • Note: To prevent accidental activation, the operation is slightly more complicated. After 30minutes of sterilization, the system will automatically turn off.

Maintenance and Cleaning:

• Regularly clean the filter to ensure proper airflow and prevent clogging. Remove the filter from the bottom of the dryer, clean it with water, and let it dry before reinserting.
• Clean the interior and exterior of the dryer with a soft cloth and mild detergent when necessary. Avoid using harsh chemicals or abrasive materials that may damage the surface.
• Avoid direct water contact with the control panel and power socket to prevent electrical damage.
• Check the power cord periodically for any signs of damage. If any damage is found, stop using the dryer and contact customer service for assistance.
• Store the dryer in a cool and dry place when not in use to prolong its lifespan.

Safety Precautions:

• Do not operate the dryer without the breathable fence cover.
• Do not place any foreign objects or pets on top of the dryer to avoid damage or injury.
• Keep the dryer away from flammable materials and liquids.
• Do not disassemble or modify the dryer yourself. Contact customer service for any repairs or maintenance needs.
• Do not leave pets unattended while using the dryer.
• If any abnormal noise, smell, or malfunction occurs, stop using the dryer immediately and contact customer service for assistance.
